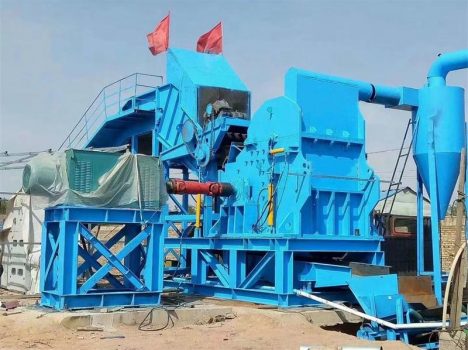

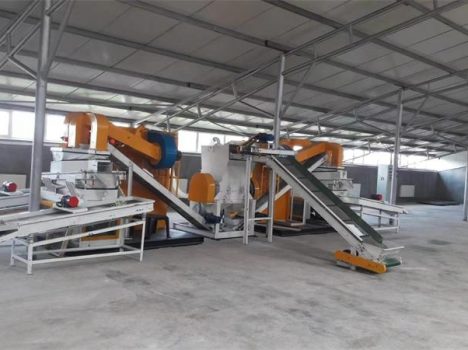

MAXIM Machinery provides an automatic tire recycling production line for processing waste tires and other recyclable rubber materials. The integrated system combines tire wire removal, shredding, granulation, steel and fiber separation, rubber grinding, and screening to produce reusable rubber granules or powder.
MAXIM recycling equipment can be configured according to the tire type, required processing capacity, target particle size, plant space, and local electrical standards. The final recovered materials include rubber powder, steel wire, and fiber.

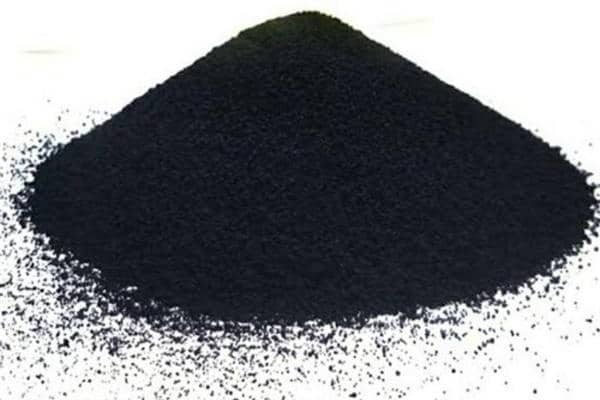

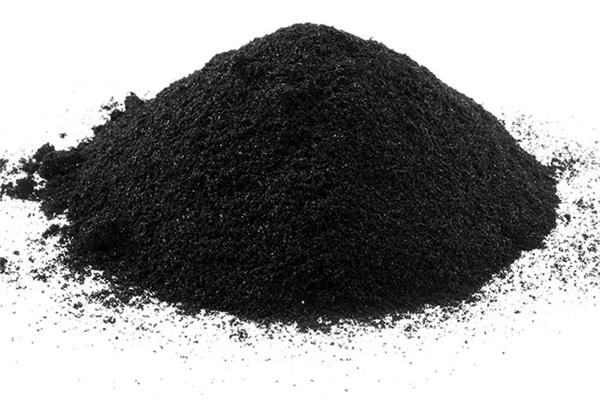

Rubber Powder is the final result of ambient tire recycling. At this stage, crumb rubber is ground down into a clean powder form with virtually all steel and fiber removed. Rubber Powder has numerous secondary uses from injection molding products, coatings, roofing materials and various asphalt applications.
Rubber Powder is typically found in 400 – 74 microns (0.400 – .074 mm) in size. This micron-size material has the advantage of being incorporated into new or existing formulations for various polymers and finished products.
By Tire recycling plant, get the final product is rubber powder, fiber and steel wire, concrete rubber powder fineness (mesh) can be processed according to the needs of customers. We can offer different capacity of waste tire recycling plant from 100 kg/h to 3000 kg/h. The rubber powder size 10, 20 mesh, 30 mesh, 40 mesh, 60 mesh, 80 mesh, and the Max 120 mesh

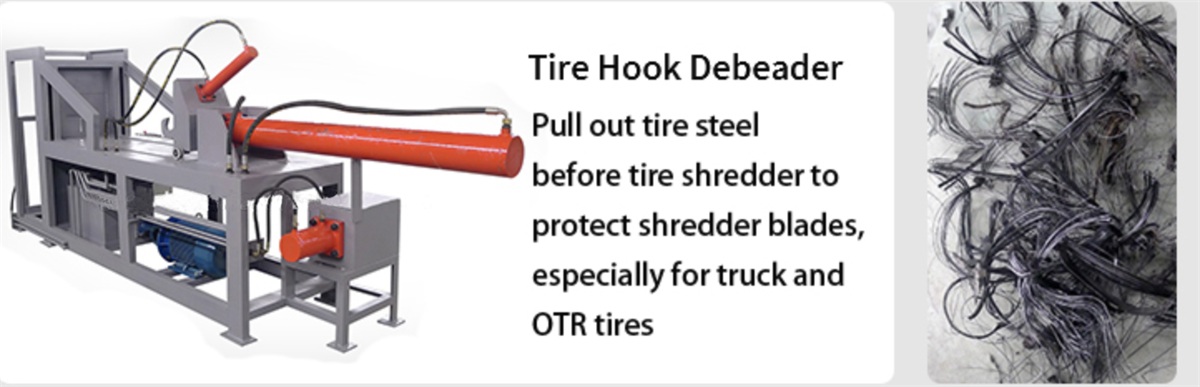

Wire debeader machine is designed to draw the tire wires out before going to the double shaft shredder. It can deal with 50-60 tires per hour. The size of the tire can be reached to 1200mm. In this way, not only the blades of shredder can be protected, but also make full use of the tire wires. It is part of tire recycling plant.

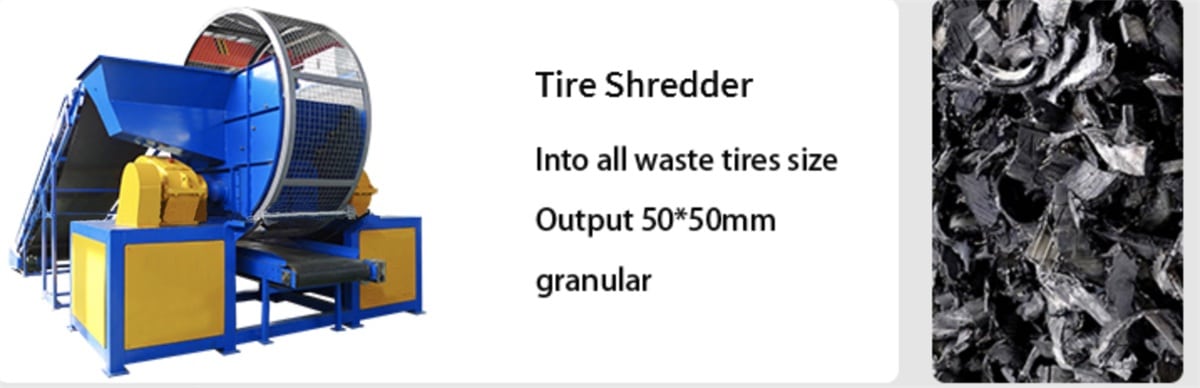

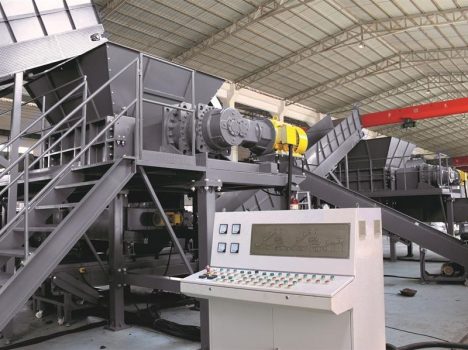

Two-shaft tire crusher is specially designed for old tires with low speed and high torque to minimize noise and power consumption.

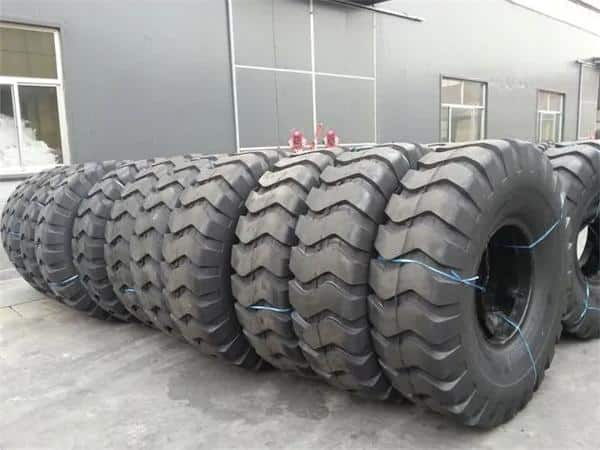

The thickness range of the crushing blade is 25mm-152mm according to the tire type,output and final product. The grinder can process OTR tires,big truck tires,car tires and so on at the speed of 1-30tons whithin 1 hour.

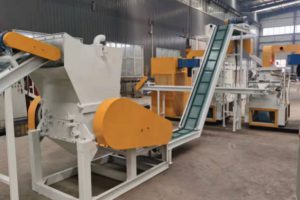

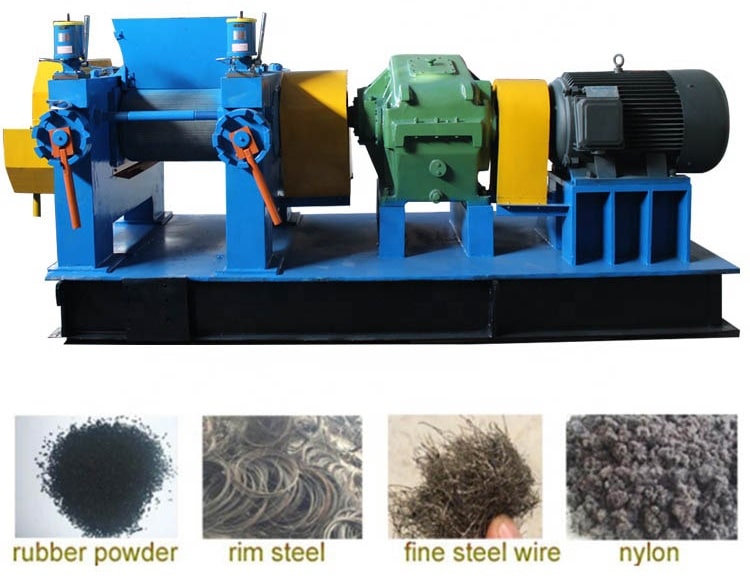

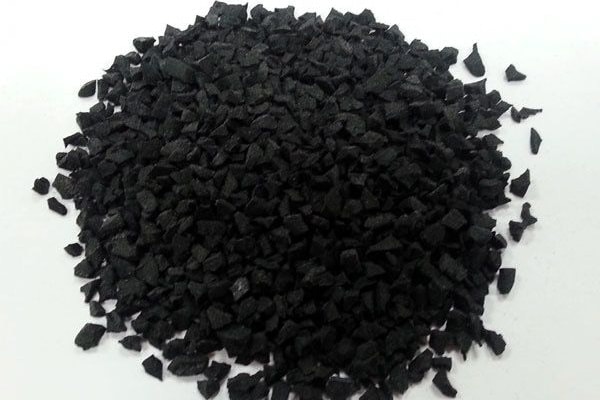

Waste Tire Recycling Rubber Granule Making Machine is adopting physical recycling method and is designed to grind the rubber mulch from the rasper into small granules as fine as 1-6mm. The granules are screened and re-circulated until the desired size is reached. This Fully-Automatic Tyre Recycling Line running in normal temperature, no need to add any other chemicals, no pollution to the environment. This is the best way to recycling scrap tires.

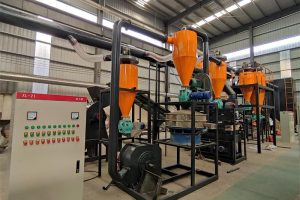

Rubber powder is the final result of ambient tire recycling.At this stage,crumb rubber is ground down into a clean powder form with virtually all steel and fiber removed.Rubber powder has numerous secondary uses from injection molding products,coatings,roofing materials and various asphalt applications.
Rubber powder is typically found in 40-74 microns(0.40-0.74mm) in size.This micron size materials has the advantage of being incorporated into new or existing formulations for various polymers and finished products.

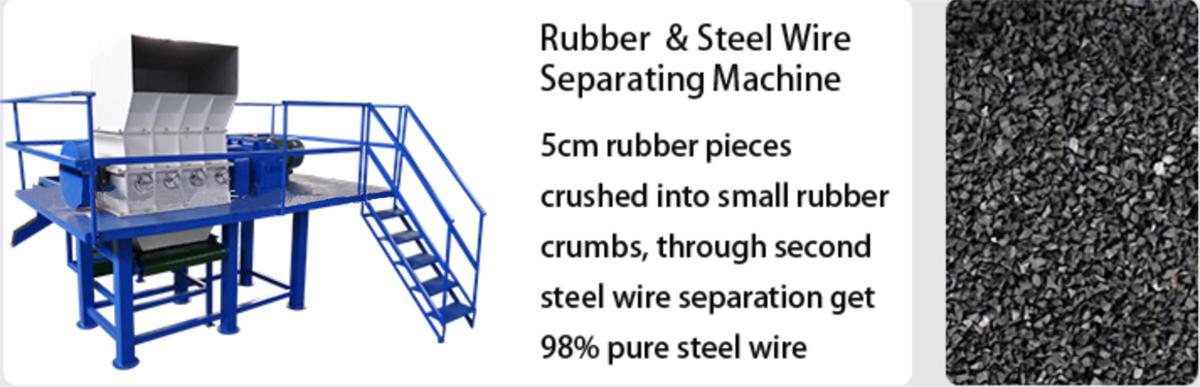

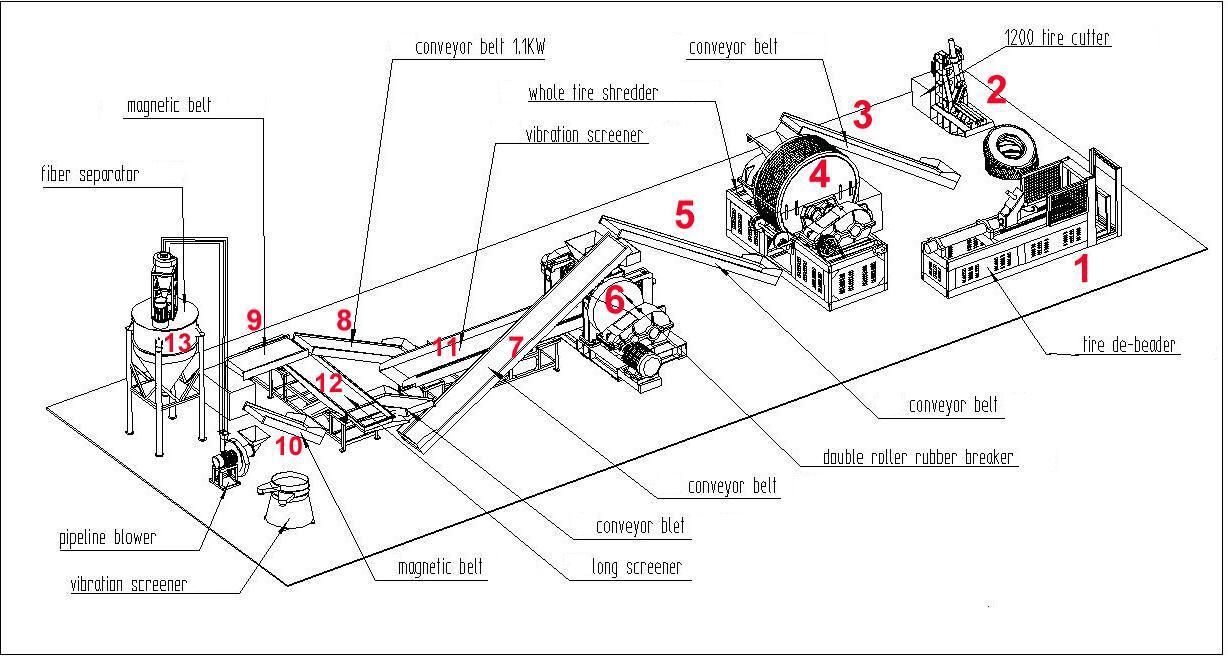

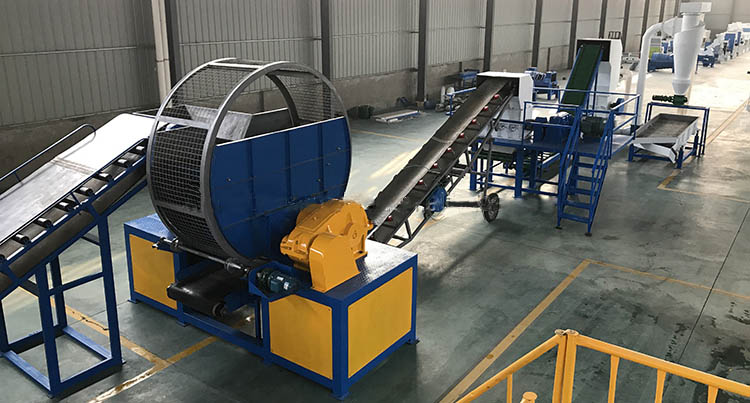

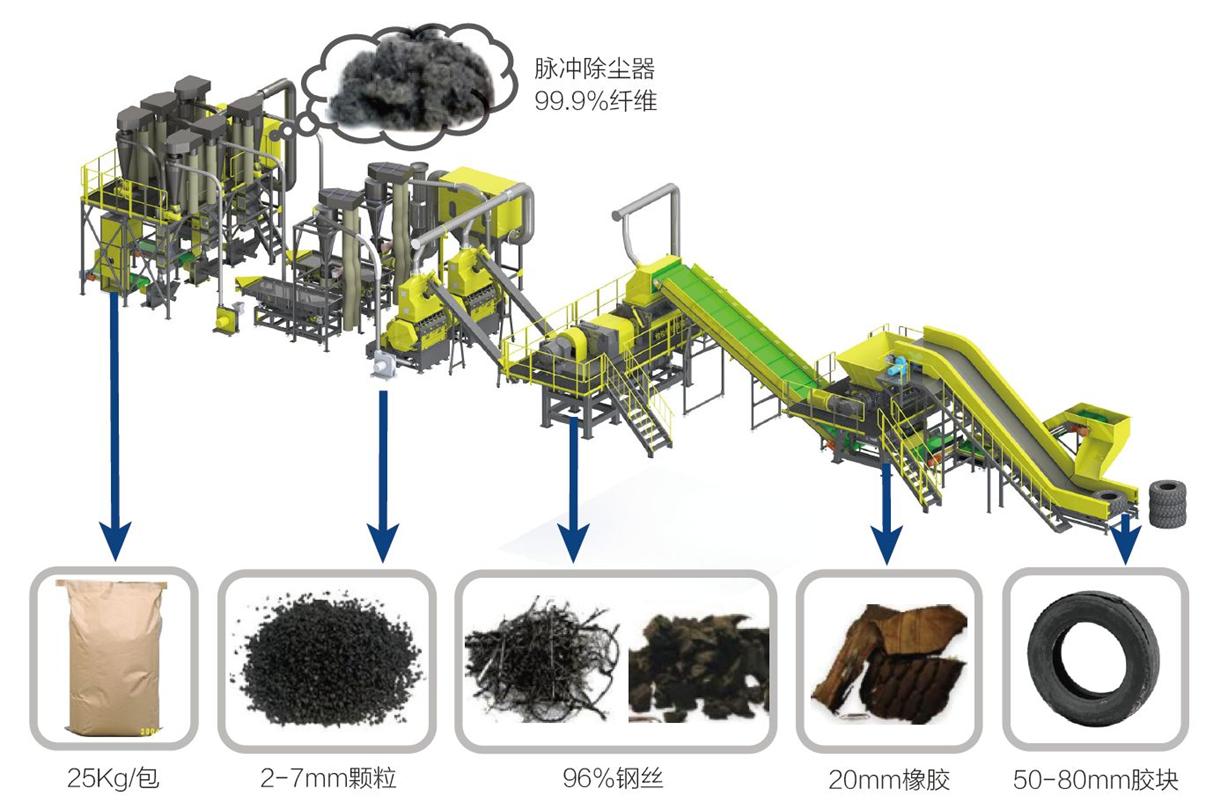

MAXIM recycling equipment integrates multiple tire-processing stages into one coordinated production line. The system supports tire wire removal, low-speed high-torque shredding, rubber granulation, repeated screening, and the separation of steel wire and fiber. Equipment configuration can be adjusted according to the required output and finished rubber size.
