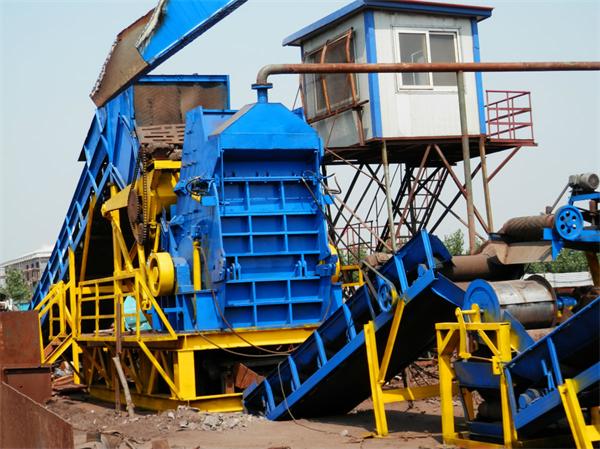

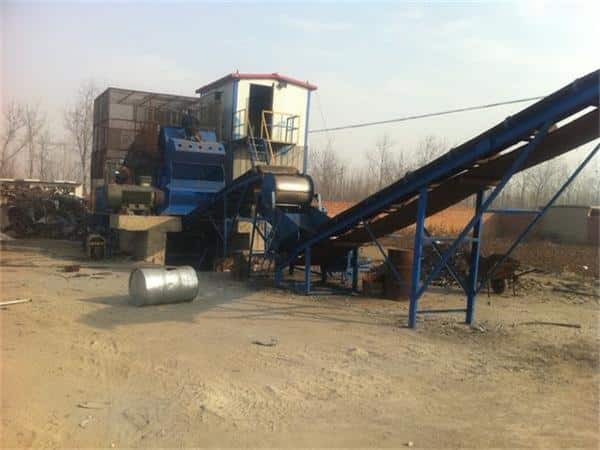

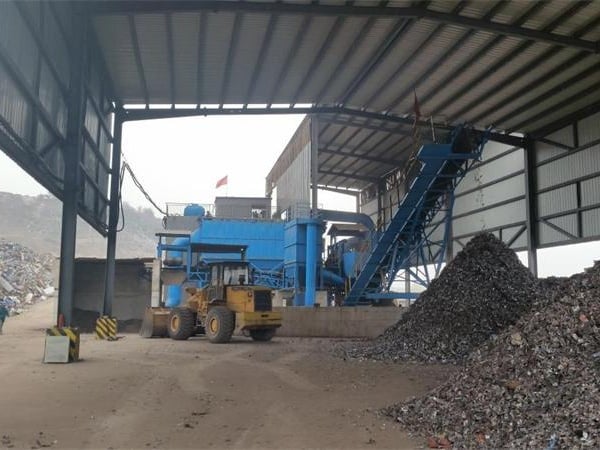

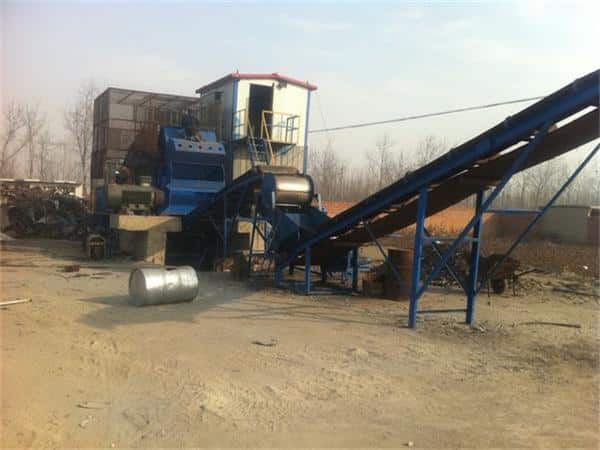

The MAXIM scrap metal recycling production line is designed for the size reduction, separation, and recovery of large-volume ferrous and non-ferrous metal waste. Typical feed materials include scrap steel, car shells, metal drums, refrigerators, household appliances, steel furniture, and mixed industrial metal scrap.

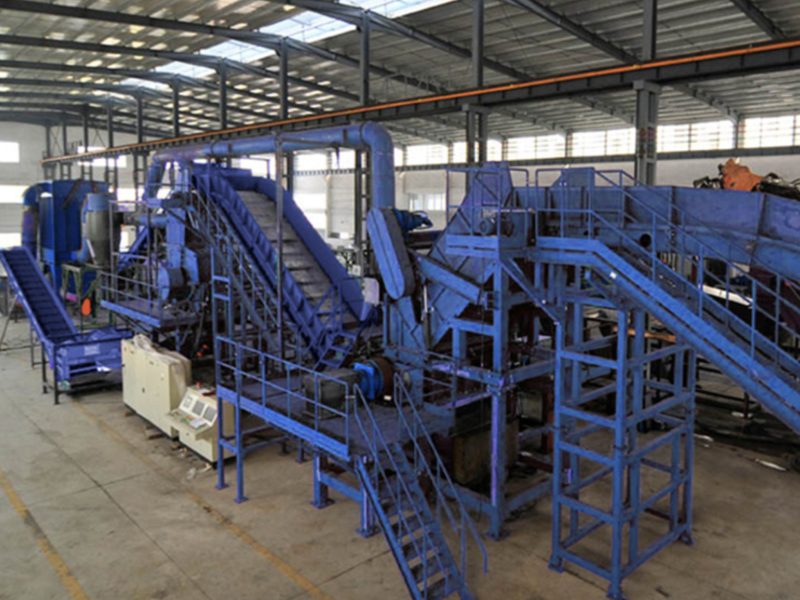

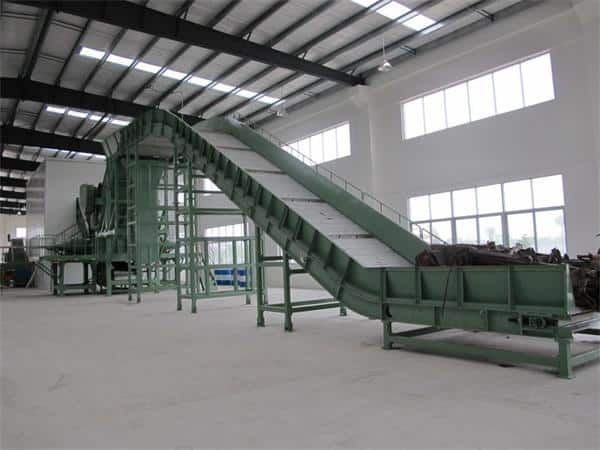

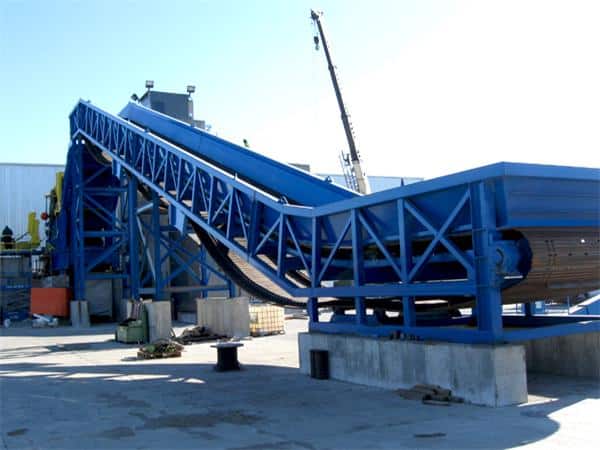

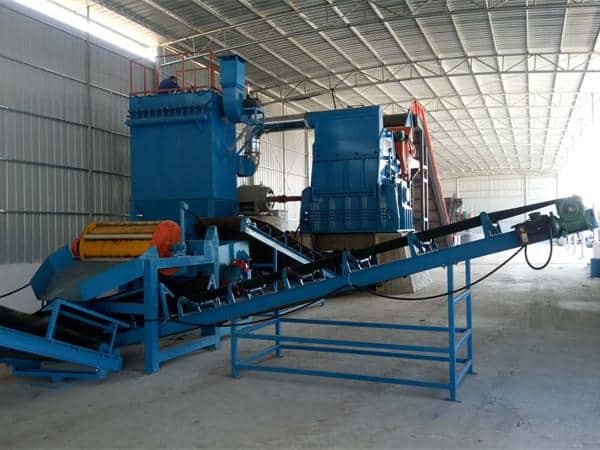

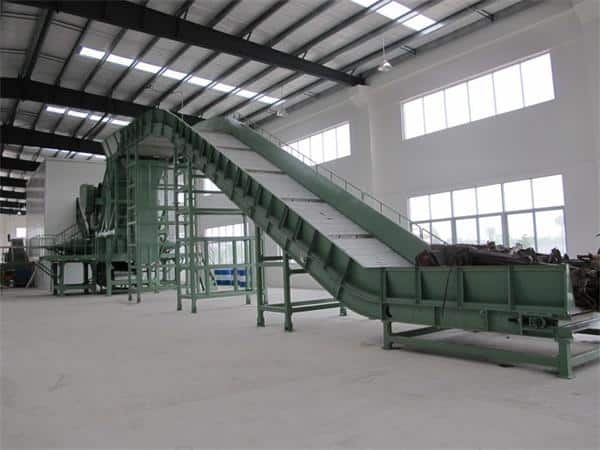

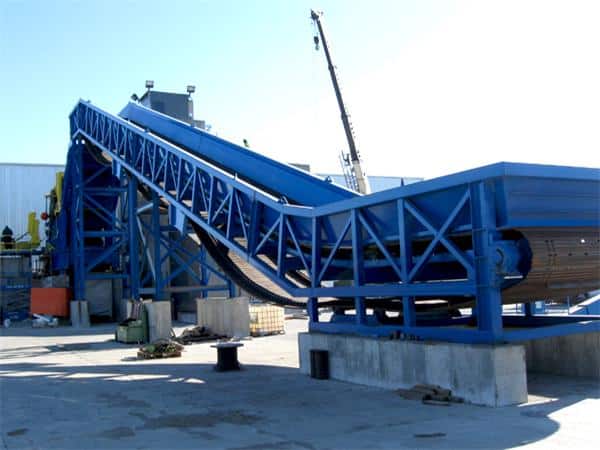

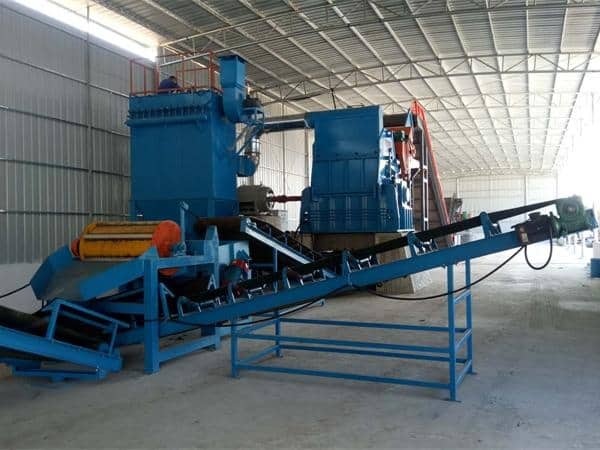

The complete scrap metal processing line can include a feeding conveyor, pre-shredder machine, hammer shredder machine, vibrating feeder, discharge conveyor, magnetic separator, eddy current separator, dust collection system, and PLC control cabinet.
The pre-shredder performs primary size reduction, while the hammer crusher further processes the material into smaller and denser fractions. Magnetic and eddy current separation equipment then recovers ferrous and non-ferrous metals from impurities. The final configuration can be adjusted according to the raw material, feed size, hourly capacity, target output size, and required separation process.

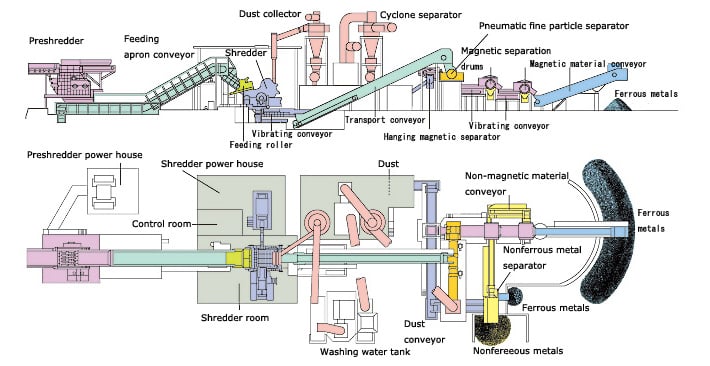

The scrap metal recycling process combines controlled feeding, primary shredding, secondary crushing, material screening, magnetic separation, non-ferrous metal separation, dust collection, and final material discharge.

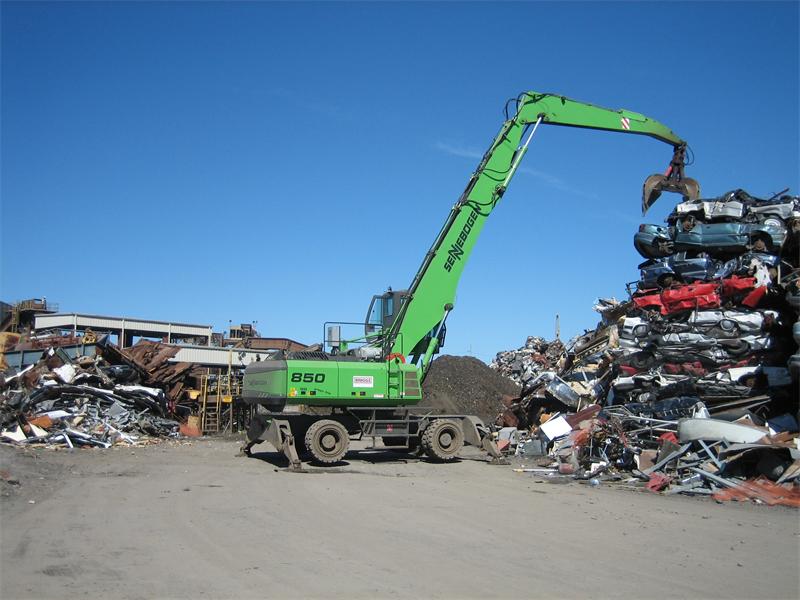

The scrap metal recycling production line is designed to process bulky and mixed metal waste, including scrap steel, metal drums, end-of-life vehicle bodies, refrigerators, steel furniture, sheet metal, and other suitable ferrous and non-ferrous materials.

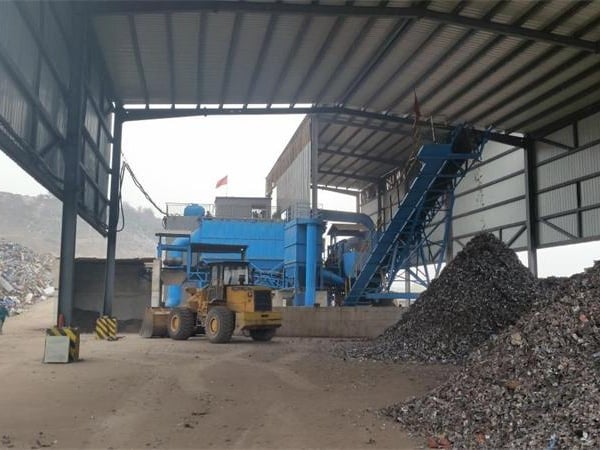

Through primary shredding, secondary crushing, and material separation, the scrap metal processing line reduces large metal waste into smaller and more manageable fractions. The processed materials are easier to transport, sort, store, and prepare for downstream metal recycling or furnace feeding.
The appropriate scrap metal processing equipment depends on the physical characteristics of the feed material and the required final product. Before equipment selection, customers should provide the following information:

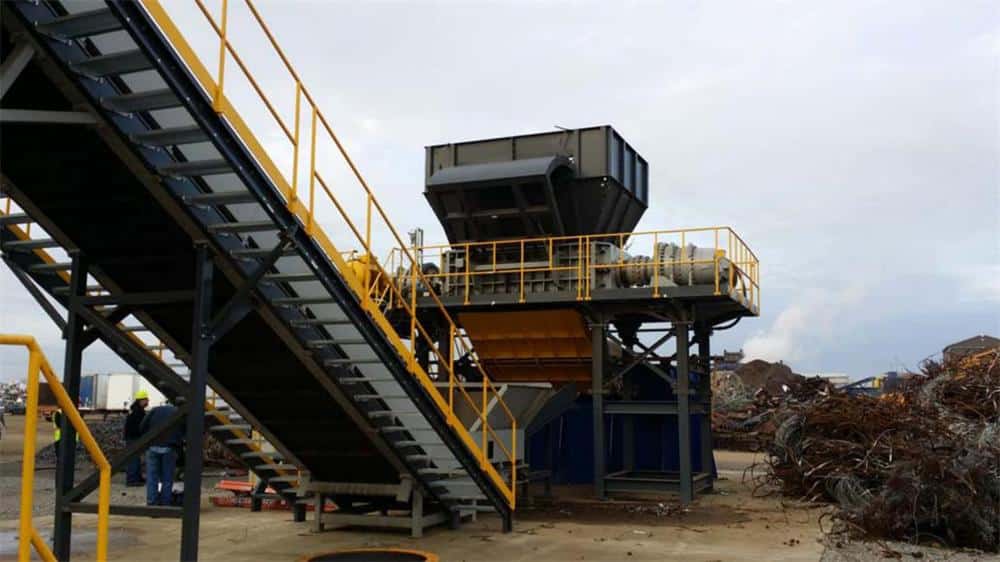

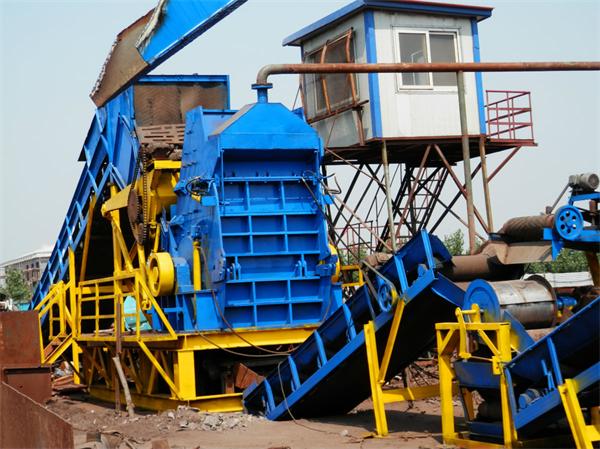

Pretreatment shredding machine is the first step of waste metal recycling production line, shredding thin and light metal with a certain strength, increase its accumulation density for easy transportation, recycling. Shredding objects such as metal barrels, refrigerators, cars, scrap steel, steel furniture and so on through the feeding system into the inside of the shredding box, box bearing shredding blade, material after shredding blade tearing, squeezing, shearing and other comprehensive effects, shredding into small pieces of material, discharged from the lower part of the shredder machine

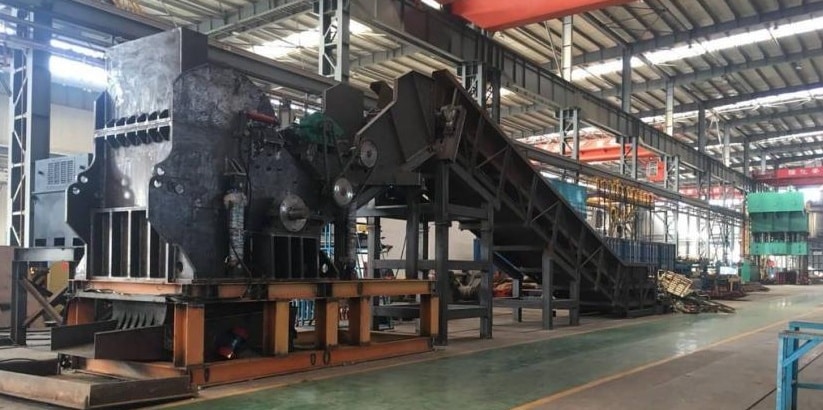

crusher can do deeper shredder to be granule after primary crushing ,making it reach requirement of output material size ,this is serise crusher has economical ,strong practicability,easy operation ,long lifetime,meanwhile can be converiently maintenance ,output the foreign matter more conveniently ,the abrasive grit bulk density over 1ton/m3

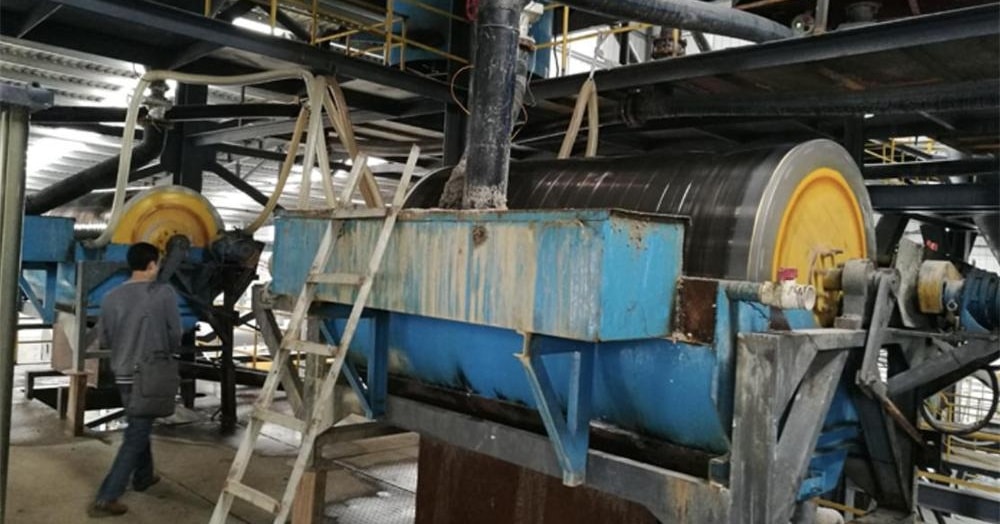

Magnetic separator in this production line can be preliminary separation of ferrous metals and non-ferrous metals, through magnetic separation can make the final metal clean, recovery price is higher, is an indispensable link in this production line

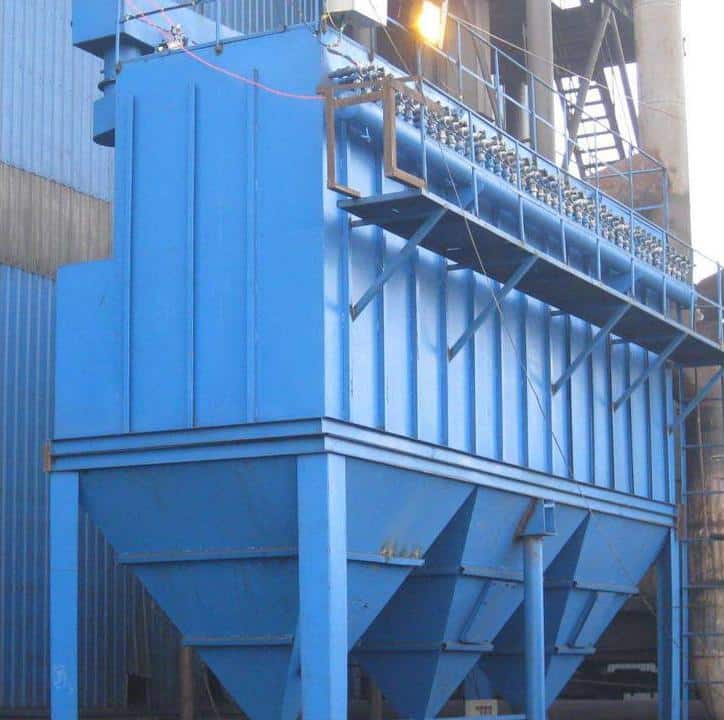

Pulse bag filter under the fan power traction, dust collector and dust removal internal pipeline and dust hood mouth forming negative pressure environment, make the dust in the dust under the action of pressure difference into dust catcher, airflow through the dust filter bag filter, dust trapped in the bag and, through the pLc control instrument regularly to the input pulse signal pulse valve, The high pressure wind of compressed gas will blow the dust attached to the filter bag surface and collect it into the dust hopper, so as to achieve the purpose of collecting dust. The clean gas after treatment is discharged from the chimney by the dust removal fan

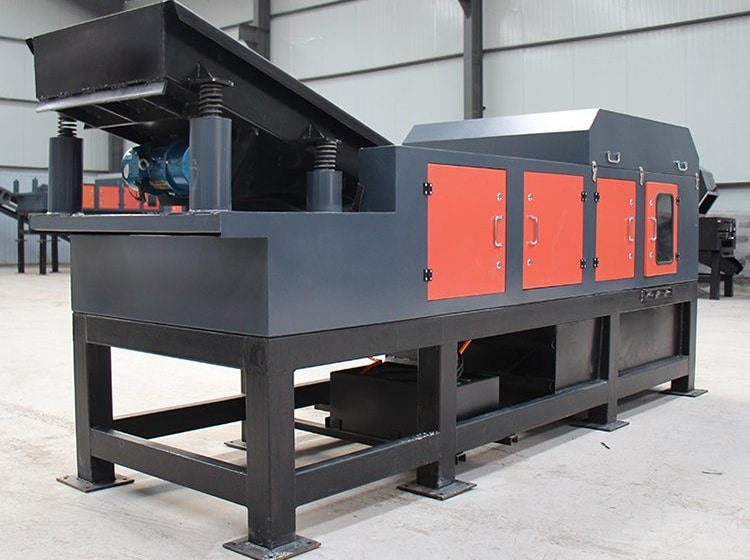

Eddy current separator at work, in the separation of magnetic roller surface to produce alternating magnetic field, when there is a non-ferrous metal through the magnetic field on the conductivity of the will in non-ferrous metal induced eddy current and the eddy current itself will produce with the original magnetic field opposite the direction of the magnetic field, non-ferrous metal (such as copper, aluminum, etc.) may be because the repulsion of the magnetic field and leap forward along the transport direction, To achieve separation with other non-conductor or non-metal materials, to achieve the purpose of sorting.
