Rotary Kiln Dryer Machine

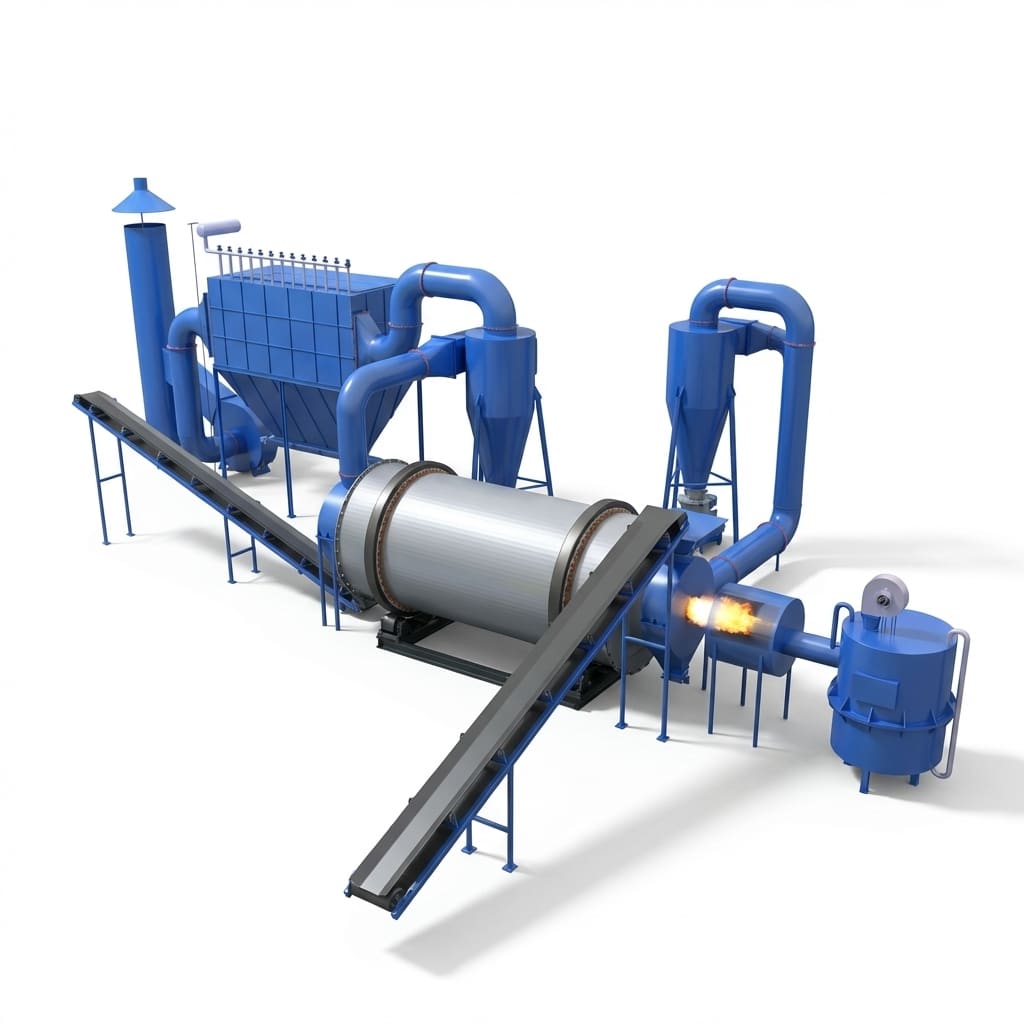

The rotary kiln dryer achieves a more compact footprint by replacing the single-cylinder design of conventional dryers with a nested configuration of three cylinders. During operation, materials and hot air enter sequentially from the innermost to the outermost cylinder. After undergoing a zigzag flow pattern within the machine, the materials are thoroughly dried through efficient thermal utilisation before discharge.

The industrial drum dryer achieves a more compact footprint by replacing the single-cylinder design with three nested cylinders. During operation, materials and hot air enter sequentially from the innermost to the outermost cylinder. After undergoing a zigzag flow pattern within the machine, the materials are thoroughly dried through efficient thermal utilisation before discharge.

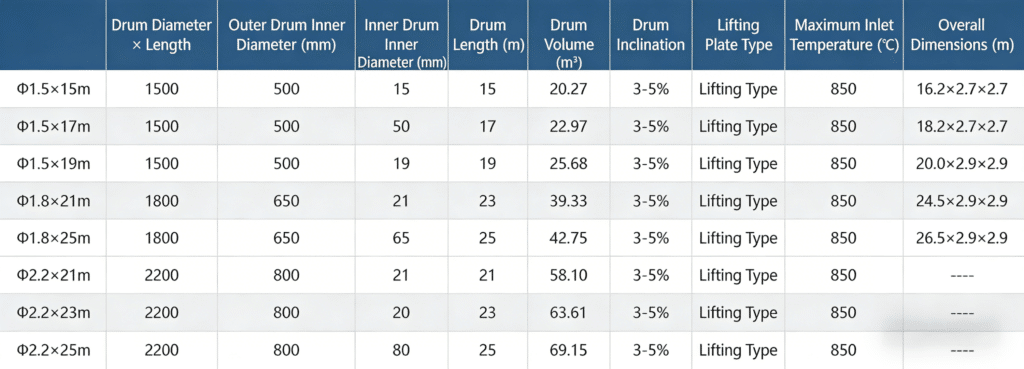

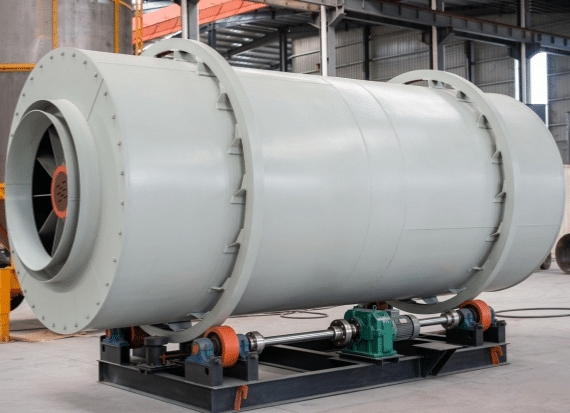

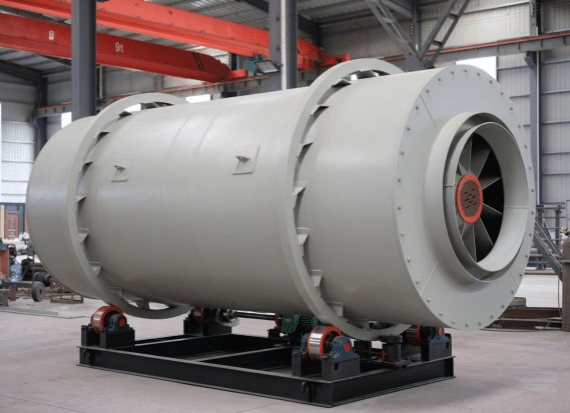

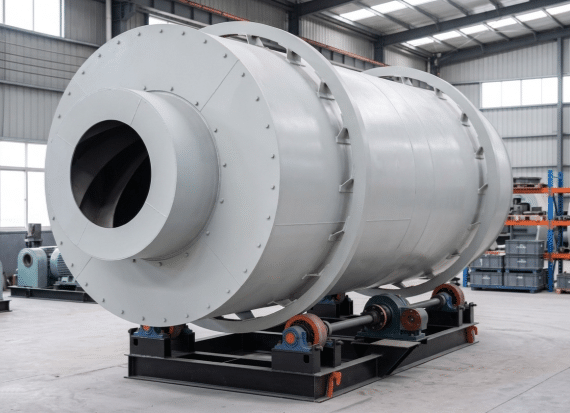

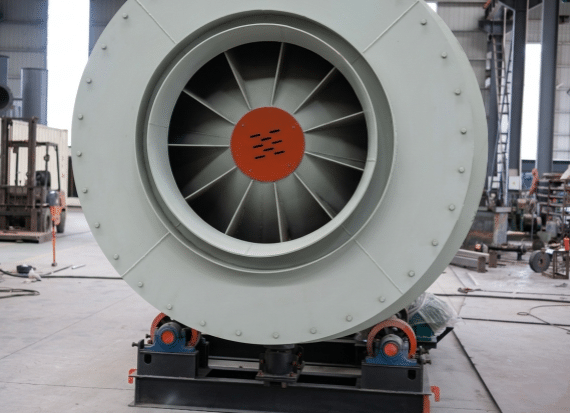

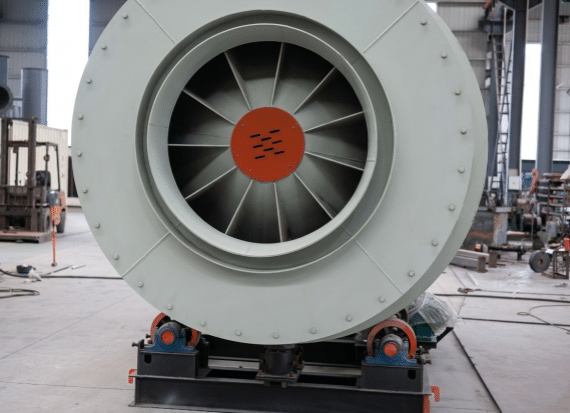

The drum assembly comprises three coaxially aligned horizontal cylinders—inner, middle, and outer—nesting within each other. This configuration maximises cross-sectional utilisation. The total external length is approximately 30-35% that of an equivalent single-drum unit, substantially reducing both footprint and factory floor space requirements.

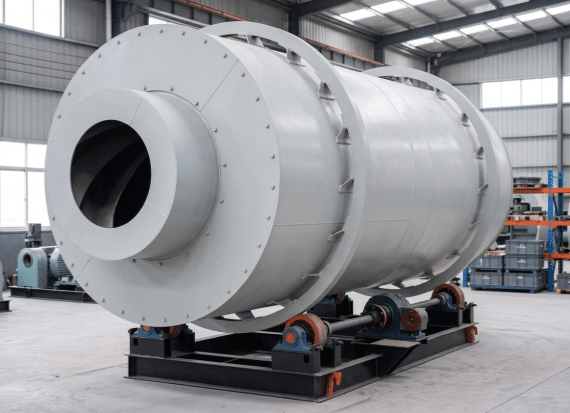

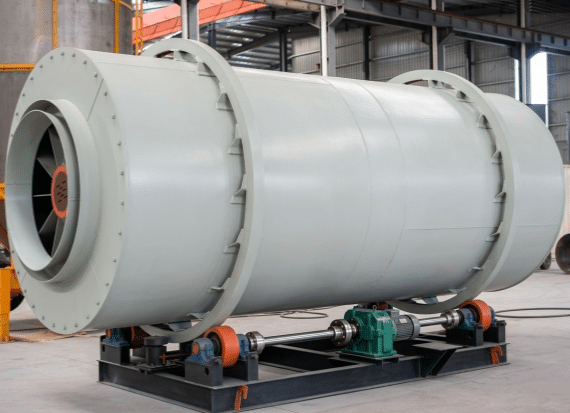

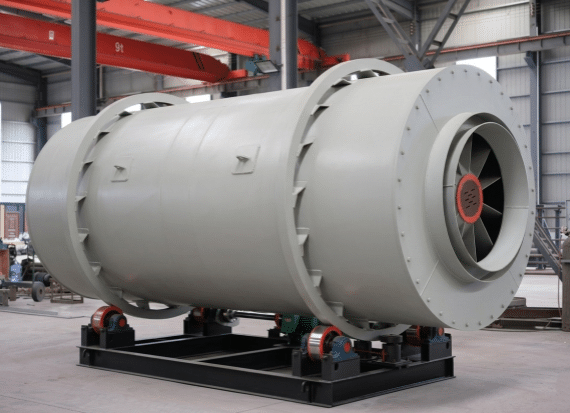

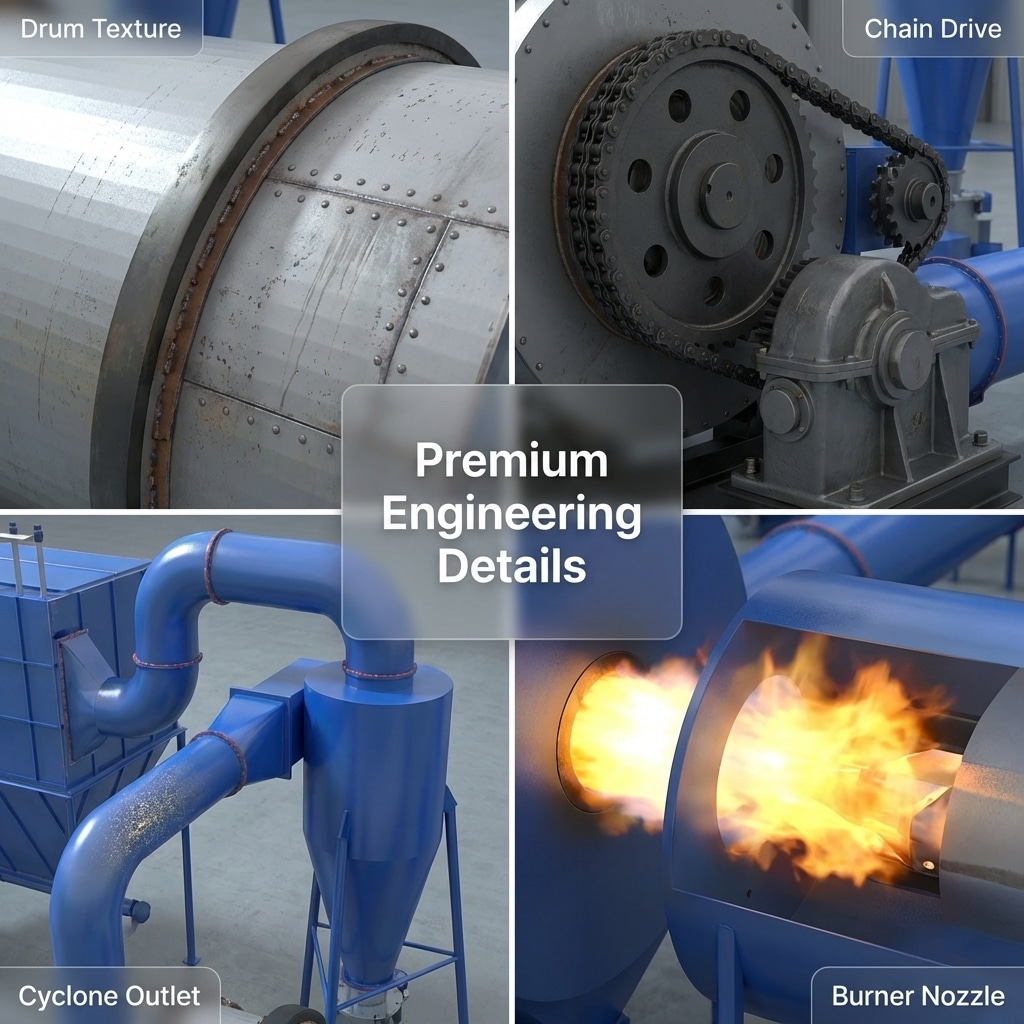

The support mechanism employs a combination of ring bearings and support rollers mounted on the outer cylinder. The support rollers are directly driven by an electric motor, generating cylinder rotation through friction between the rollers and ring bearings. The overall structure is compact, rational, and straightforward. To facilitate maintenance and replacement of wear parts, the middle section features an axially split design secured by bolted connections.

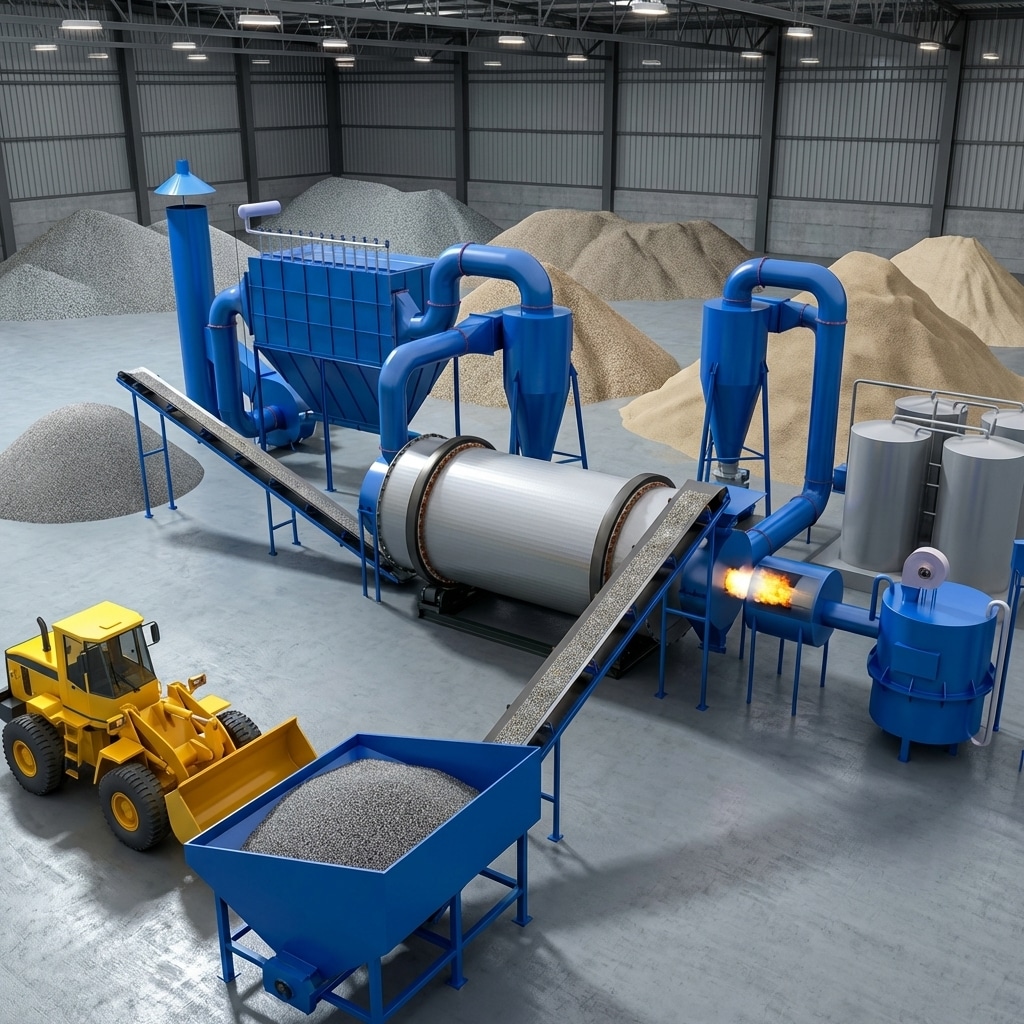

Material enters the inner layer of the dryer’s rotating drum via the feeding device, undergoing co-current drying. Within the inner layer, material is continuously lifted and scattered by the flighting plates, progressing in a spiral pattern to facilitate heat exchange. As material moves to the opposite end of the inner layer, it enters the middle layer for counter-current drying. Within the middle layer, the material undergoes repeated lifting and advancement in a ‘two steps forward, one step back’ progression. Here, it fully absorbs both the residual heat emitted from the inner layer drum and the heat generated by the middle layer drum itself. This extended drying time ensures the material achieves its optimal drying state.

Q1: What is the price of an industrial rotary dryer?
The pricing for industrial rotary dryers (rotary kiln dryers) varies considerably, as they are typically non-standard custom-built units.

Q2: What is the maintenance interval for a drum dryer?
To ensure the equipment’s service life (typically 10-20 years), establishing a preventative maintenance programme is crucial.

Q3: Single-pass vs. triple-pass dryers: How should one choose?
Opt for single-pass: If ample floor space is available and the material being processed is bulky, difficult to dry, or corrosive (due to the ease of maintenance and inspection).
Opt for triple-pass: If floor space is limited, or the material is lightweight and demands high thermal efficiency (such as wood chips, hay, or feedstuffs), the triple-pass dryer is the more energy-efficient and environmentally sound choice.
